Compare commits and branches
The Compare panel shows how two commits or two branches differ: the commits that are only on each side, and the overall change between them. It opens on the right of the repository tab, in place of the commit details.
Compare two commits
Section titled “Compare two commits”- In the commit graph, click a commit, then ⌘-click (Ctrl-click on Windows and Linux) a second one.
- Do one of:
- Click Compare in the selection bar that appears at the bottom of the graph.
- Right-click one of the two commits, then Compare these 2 commits.
- Run Compare the 2 selected commits from the command palette (⌘K, Ctrl+K on Windows and Linux).
These entries are available only when exactly two commits are selected. Side A is the newer commit, side B the older one, both labeled by short SHA.
To compare one commit with HEAD, right-click it, then Compare with HEAD. Side A is the commit, side B is HEAD.
Compare two branches
Section titled “Compare two branches”| Entry point | Compares |
|---|---|
| Sidebar: right-click a branch, then Compare with current | That branch (A) with the checked-out branch (B) |
| Sidebar: right-click a branch, then Compare with… | Opens the dialog below, with that branch as Branch |
| Command palette: Compare two branches… | Opens the dialog below |
Compare with current is disabled on the checked-out branch and when HEAD is detached: “Check out another branch to compare with”.

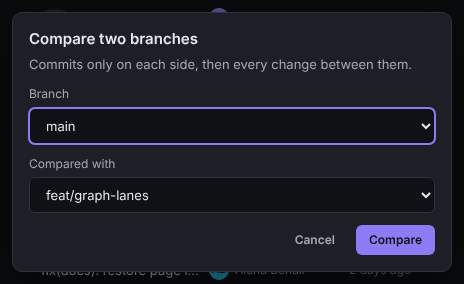

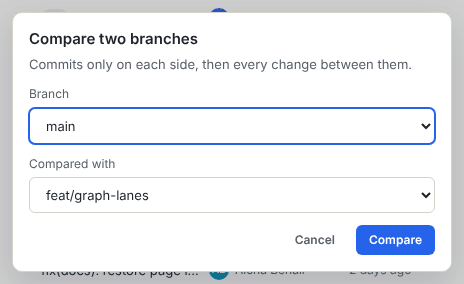

The Compare two branches dialog lists local and remote branches:
- Pick a Branch (side A).
- Pick what it is Compared with (side B). It defaults to the checked-out branch.
- Click Compare. The button stays disabled until the two branches differ: “Choose two different branches.”

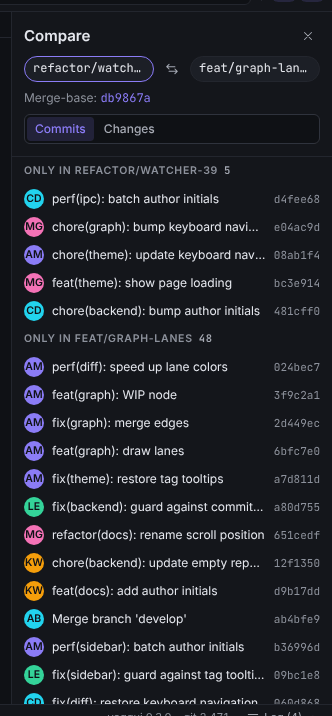

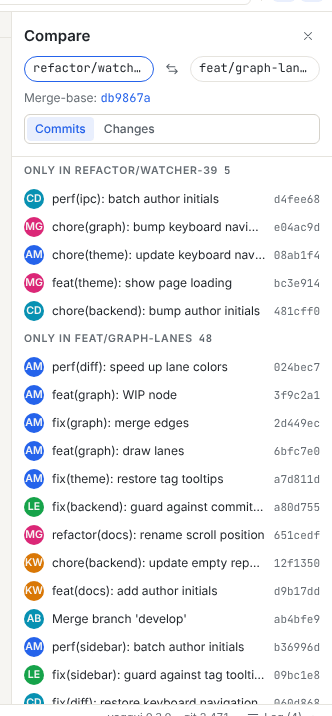

Read the Compare panel
Section titled “Read the Compare panel”The panel header shows the two sides, A ⇄ B. Swap the sides exchanges them. Below, Merge-base: gives the short SHA of the two sides’ common ancestor (git merge-base); click it to select that commit in the graph. If the sides share no history, it reads “No common ancestor: unrelated histories”.
Switch between the two views with Commits and Changes.
Commits
Section titled “Commits”Two lists, Only in A and Only in B, each with a count. They hold the commits reachable from one side but not from the other, like git log B..A and git log A..B. A side with none shows “No commit”.
Each list shows up to 1000 commits; beyond that, “N more commits, not listed (first 1000 shown)”. Click a commit to select it in the graph.
Changes
Section titled “Changes”The file list “Changes B → A” (both sides as short SHAs) holds the overall difference between the two sides, as git diff B A would show it: what A has that B lacks. Each file shows its status and +/− line counts. Click a file to open its diff in the center, with every feature of the diff viewer. If the two sides have the same content, the list reads “No difference between the two”.
For two commits, B is the older one, so the changes read from older to newer.
Updates and errors
Section titled “Updates and errors”The panel recomputes itself when branches or tags change. If it fails, it shows “The comparison could not be loaded” with Retry. Comparing runs no Git command: yaggui reads the history directly.
Close the panel with Close the comparison. The comparison is not saved when you close the repository.
Jump to the merge-base
Section titled “Jump to the merge-base”To select the common ancestor of two commits in the graph:
- With two commits selected: Merge-base in the selection bar, Go to their merge-base in the context menu, or the palette action Go to the merge-base of the 2 selected commits.
- For a commit and HEAD: right-click the commit, then Go to the merge-base with HEAD.
- For two branches: compare them, then click the SHA after Merge-base: in the panel.
The merge-base is selected and centered. If the histories are unrelated, a toast says “No common ancestor: these histories are unrelated”. If a graph filter hides the merge-base, it is still selected and its details shown, with “The merge-base abc1234 is not shown in the graph (filter)”.
