External tools

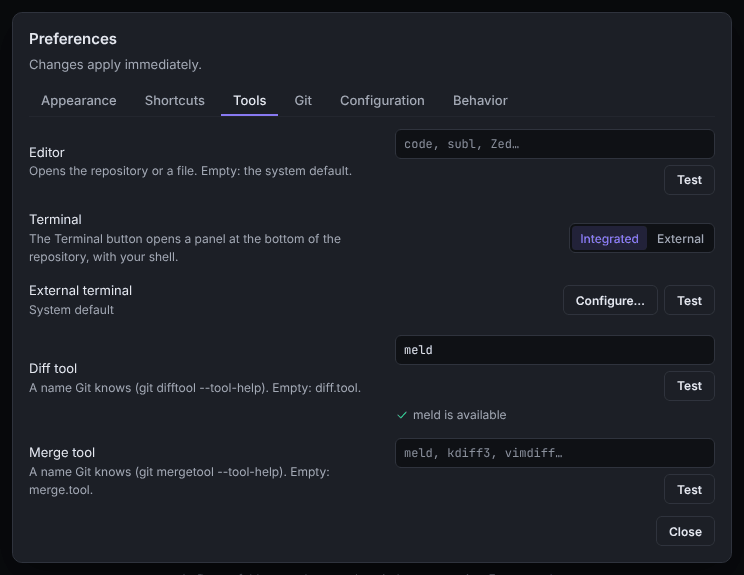

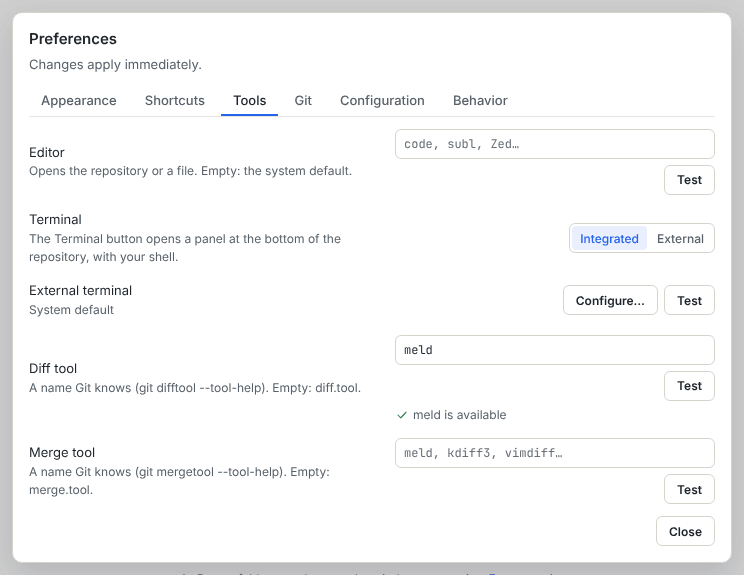

yaggui can hand a repository or a file over to other programs: your editor, a terminal, a diff tool, a merge tool and the system file manager. You choose them in Preferences › Tools. Each row has a Test button that tries the tool before you rely on it.

yaggui never goes through a shell to start these programs: the program and the file or folder are passed as separate arguments.

Test a tool

Click Test next to a row. It uses the value you are typing, even before it is saved (an empty field tests the saved value). The result shows under the row:

Tool	Success	Possible failures
Editor	“Started: editor”. The editor really opens a scratch file, yaggui-editor-test.txt in the temporary folder	The editor could not be started (see below)
Terminal	“Started: terminal”. A terminal really opens in the temporary folder	The terminal could not be started (see below)
Diff tool / Merge tool	“tool is available”	“No tool named and diff.tool is not set.” (or merge.tool); “Git knows “tool” but it is not installed.“; “Git does not know “tool”: pick a listed tool or define its command in your Git configuration.”

Editor

Editor names the program that opens a repository or a file. Type a name and press Enter or leave the field to save it. Leave it empty to use the system’s default application.

OS	With a value	Empty
macOS	open -a <application> <target>: the value is an application name, for example Visual Studio Code or Zed	open <target>
Windows	<program> <target>: a program on the PATH or a full path, for example code	explorer.exe <target>
Linux	<program> <target>, for example code or subl	xdg-open <target>

The editor is used by:

• Open in editor in the command palette: opens the repository folder.
• Open outside yaggui › Open in the editor in the diff view: opens the file from the working tree, even when you are looking at an older commit. It is disabled for a deleted file.

When the editor cannot start, a toast “Could not open the editor” shows one of these messages (there is no button: fix the setting, then try again):

• “The editor “name” could not be started. Check its name in the preferences.” Check the spelling, or give the full path of the program.
• “No application could open the file. Choose an editor in the preferences.” No editor is set and the system has no default application for this file.

A value that starts with -, contains control characters or is longer than 512 characters is refused with “The editor must be a program or application name, or a path.”

Terminal

The Terminal row chooses what the Terminal button of the repository toolbar does:

• Integrated (default): it shows or hides a terminal panel at the bottom of the repository, running your shell. See Terminal.
• External: it opens the external terminal set in the next row, in the repository folder.

The palette entry Open the external terminal in the repository always opens the external terminal, whatever the mode.

External terminal

The External terminal row shows the current choice (“Current: name” or “System default”). Click Configure… to change it, in the Terminal dialog. You can also open this dialog from the palette with Terminal settings… or, on macOS, from yaggui › Terminal Setting…. Type the terminal and click Save (“Terminal setting saved”). Leave the field empty to use the system default.

OS	With a value	Empty (system default)
macOS	open -a <application> <repository>, for example iTerm or Warp	The Terminal app
Windows	Windows Terminal (wt or wt.exe) gets -d <repository>; any other program is started alone with the repository as its working folder	wt.exe -d <repository>, otherwise cmd.exe
Linux	The program, started alone with the repository as its working folder	The first one found among $TERMINAL, x-terminal-emulator, GNOME Terminal, Konsole, Xfce Terminal, Console (kgx), Tilix, Alacritty, kitty, WezTerm, foot and xterm

On Windows and Linux, a terminal you name is used on its own, with no fallback, so a typo shows up as an error instead of silently opening another terminal.

When no terminal can be started, a toast “Could not open a terminal” shows one of these messages, with a Choose a terminal… button that opens the Terminal dialog:

• “The terminal “name” could not be started. Check its name in the terminal setting.”
• “No terminal was found on this system. Choose the one to use in the terminal setting.”

Diff tool

The Diff tool opens a file’s changes in an external program through git difftool. Type a tool name Git knows (the field suggests meld, kdiff3, vimdiff, bc, opendiff, p4merge, smerge, araxis, winmerge, tortoisemerge, xxdiff), or a custom tool you defined with difftool.<name>.cmd in your Git configuration. Run git difftool --tool-help in a terminal to see what your Git supports.

yaggui picks the tool in this order:

1. The Diff tool preference.
2. diff.tool from your Git configuration.
3. diff.guitool, run with --gui.

To use it, open a diff and choose Open outside yaggui › Open in the external diff tool, or run Open the current file in the external diff tool from the palette. yaggui runs, for example:

git difftool --no-prompt --tool=meld --cached -- src/main.rs

--cached is used for a staged diff; a commit diff passes the two commit SHAs; an unstaged diff passes neither. yaggui waits for the tool to close (“The diff tool is open: close it to use it again”) but the repository stays usable meanwhile. The command appears in the command log.

Errors:

• “No external diff tool is configured: choose one in the preferences (Tools) or set diff.tool in your Git configuration.” yaggui never falls back to a terminal tool.
• “The diff tool “tool” could not be started. Check that it is installed and configured (difftool.tool.cmd).” Shown under “The diff tool could not be opened”, with an Open command log button that shows Git’s output.

Merge tool

The Merge tool resolves a conflicted file in an external program through git mergetool. It works like the diff tool: the Merge tool preference wins, otherwise merge.tool from your Git configuration is used.

In the conflict view, the button Open in tool runs:

git mergetool --no-prompt --tool=<tool> -- <path>

yaggui waits for the tool to close and checks whether the file is resolved. With no tool configured, the button reads External tool and is disabled.

Errors:

• “No external merge tool is configured: set merge.tool in your Git configuration.”
• “The merge tool “tool” could not be started. Check that it is installed and configured (mergetool.tool.cmd).”

A tool name may only contain letters, digits and - _ . +, must not start with - or ., and is at most 100 characters. Otherwise the preference is refused with “”value” is not a valid tool name (letters, digits, - _ . + only).”

File manager

The file manager is always the system one; it has no preference.

• The Files button of the repository toolbar (or Open the repository in the file manager in the palette) opens the repository folder: open on macOS, explorer.exe on Windows, xdg-open on Linux. On failure: “Could not open the file manager” with “The file manager could not open the repository folder.”
• Open outside yaggui › Show in the file manager in the diff view shows the file: selected in Finder (open -R) or Explorer (explorer.exe /select,), and its folder opened on Linux (xdg-open, no selection). It is disabled for a deleted file. On failure: “The file could not be shown”.

Related

• Every Tools setting with its default: Preferences reference.
• The integrated terminal: Terminal.
